Blind Flanges — ASME B16.5 & B16.47

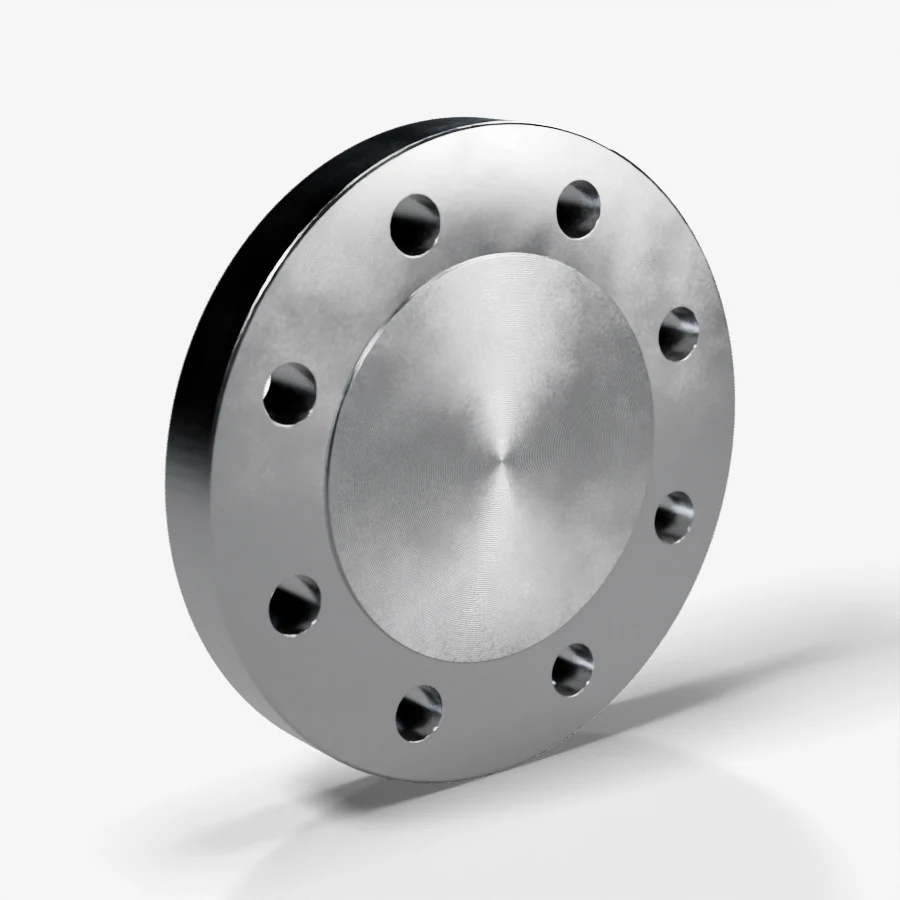

A blind flange is a solid flange with no bore, used to close the end of a pipe, valve or vessel nozzle. Teshi Group manufactures blind flanges to ASME B16.5, ASME B16.47 Series A/B and EN 1092-1 Type 05 in carbon, stainless, alloy and duplex steels.
Also called: BL flange, BLRF flange, blank flange, blind raised face flange
What is a Blind Flange?
A blind (BL) flange is a solid disc drilled with the standard bolt pattern of its class, bolted against a mating flange to seal a line end. It carries the full pressure load as a plate in bending, together with bolt loads, so it is generally the most highly stressed flange type in larger sizes. Blind flanges close pipe ends and nozzles, isolate sections for pressure testing, and provide access points that can be opened for inspection or cleaning. They can be supplied drilled and tapped for a vent, drain or instrument connection when specified.
Key features
- Solid forged disc; no bore
- Same OD, bolt circle and drilling as the mating flange of the same class
- RF, FF or RTJ facing; RTJ groove machined to ASME B16.5 / B16.20
- Optional centre tapping (NPT or socket) for vent, drain or instrument
- Large sizes in B16.47 Series A or B
Specification
| Supply | OEM manufacturer — Teshi Group, India, India |
|---|---|
| Standard | ASME B16.5 (NPS ½″–24″); ASME B16.47 Series A/B (NPS 26″–60″); EN 1092-1 Type 05 |
| Pressure class | Class 150–2500 (B16.5); Class 75–900 (B16.47, by series); PN 2.5–PN 400 (EN 1092-1) |
| Facing | RF, FF, RTJ |
| Materials — carbon steel | ASTM A105, A350 LF2 Cl 1 |
| Materials — stainless steel | ASTM A182 F304, F304L, F316, F316L, F321; F904L (UNS N08904) |
| Materials — alloy steel | ASTM A182 F11 Cl 2, F22 Cl 3, F91 |
| Materials — duplex | ASTM A182 F51 (UNS S31803) |
| Options | Tapped NPT or socket-weld centre hole, lifting lugs on heavy sizes |
| Testing | Visual and dimensional inspection, PMI on alloy and stainless grades, hardness; UT, MPI/DPI as specified |
| Documents | EN 10204 3.1 mill test certificate; 3.2 / third-party inspection when the order specifies; dimensional inspection report; IBR certification when specified |
Applications
- Pipe and header end closures
- Vessel and exchanger nozzle covers
- Hydrotest isolation of piping sections
- Pigging and cleaning access points
- Future tie-in points on process lines
Technical data sheets
Dimensions & weights
FAQ
Blind Flange: common questions
Is a blind flange the same as a spectacle blind?
No. A blind flange bolts onto the end of a flanged pipe. A spectacle blind, spade or spacer to ASME B16.48 is a line blank inserted between two flanges to isolate a line in service.
Can a blind flange be tapped?
Yes. A centre or offset tapping can be machined for a vent, drain, pressure gauge or instrument. State the thread (for example ½″ NPT per ASME B1.20.1) or socket size on the order.
Do B16.47 Series A and Series B blind flanges interchange?
No. Series A and Series B have different outside diameters, bolt circles and bolt counts in the same NPS and class. Confirm the series with the mating flange or the piping class.
What thickness is a blind flange?
The thickness is fixed by the class and NPS in ASME B16.5 or B16.47. See the dimension tables linked on this page; they give flange thickness and weight for each size.
Need a size or grade not listed here?
Our engineering team manufactures against your drawing or datasheet, with dimensional sign-off before dispatch.
Send us your specificationTraceability
From mill heat to your site
- 01
Approved mill material
Received against the mill certificate; heat number registered.
- 02
Forging & machining
Heat number carried through every stage in our Indian works.
- 03
PMI, dimensional & NDT
Every lot inspected to the governing standard; TPI witness on request.
- 04
Stamped & certified dispatch
Hard-stamped pieces with EN 10204 3.1 / 3.2 certificates.
Quick RFQ
Quote for Blind Flange in 24–48 hours
