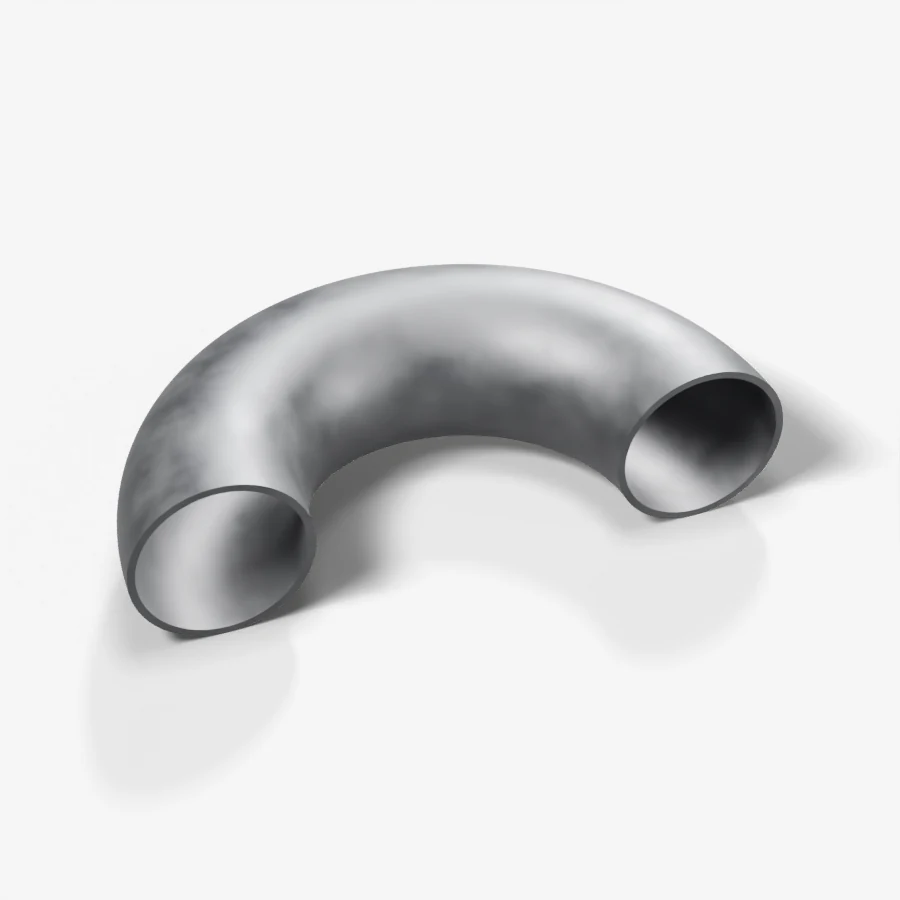

180° Return Bends — Long Radius & Short Radius, ASME B16.9
A 180° return bend reverses the flow direction of a pipeline in a single butt weld fitting. Teshi Group manufactures long radius and short radius 180° returns to ASME B16.9 in carbon, alloy, low-temperature and stainless steels.
Also called: 180 degree return, 180° elbow, U bend, return bend, LR return, SR return
What is a 180° Return Bend?
A 180° return is a U-shaped wrought fitting that turns flow back on itself. ASME B16.9 covers long radius returns (centre-to-centre distance based on a 1.5 × NPS radius) and short radius returns (1.0 × NPS radius). Returns are used to form serpentine coils and to connect parallel tubes or pipes, where using two 90° elbows would add an extra weld and take more space.
Key features
- Long radius and short radius returns per ASME B16.9
- One fitting replaces two 90° elbows and a weld joint
- Wall thickness matched to the pipe schedule
- Ends bevelled to ASME B16.25
Specification
| Supply | OEM manufacturer — Teshi Group, India, India |
|---|---|
| Standard | ASME B16.9 (LR and SR 180° returns) |
| Radius | LR = 1.5 × NPS; SR = 1.0 × NPS |
| Size range | Sizes as tabulated for returns in ASME B16.9 |
| Wall thickness | Matched to the connecting pipe schedule — Sch 5S, 10S, 40, STD, 80, XS, 160, XXS (ASME B36.10M / B36.19M) |
| Ends | Bevelled for butt welding per ASME B16.25 |
| Materials — carbon & low-temp steel | ASTM A234 WPB, WPC; ASTM A420 WPL6 |
| Materials — alloy steel | ASTM A234 WP11 Cl.1, WP22 Cl.1, WP5, WP9, WP91 |
| Materials — stainless & duplex | ASTM A403 WP304, WP304L, WP316, WP316L, WP321; ASTM A815 UNS S31803, S32750; UNS N08904 (904L) |
| Testing | Visual and dimensional inspection; PMI on alloy and stainless grades; hardness check; RT, UT, MPI or DPT and IGC tests when specified |
| Documents | EN 10204 3.1 mill test certificate; 3.2 / third-party inspection when the order specifies; dimensional inspection report; IBR certification for boiler/steam service when specified |
Applications
- Fired heater and furnace coils
- Heat exchanger and steam heating coils
- Jacketed and tracing piping
- Boiler and economiser circuits (IBR when specified)
Technical data sheets
FAQ
180° Return Bend: common questions
Why use a return bend instead of two 90° elbows?
A return bend does the same job in one piece, removing a weld joint and keeping the centre-to-centre distance fixed. This saves fabrication time and is useful in coils with many passes.
What is the centre-to-centre distance of a return?
Nominally it is twice the bend radius: 3 × NPS for long radius and 2 × NPS for short radius returns, with exact values tabulated in ASME B16.9.
Do you supply alloy steel returns for heater coils?
Yes. We supply ASTM A234 WP11, WP22, WP5, WP9 and WP91 returns, with PMI and hardness checks, and IBR certification when the order specifies it.
Can I order returns in stainless steel thin wall?
Yes. ASTM A403 WP304L and WP316L returns can be supplied in Sch 10S and 40S as well as heavier schedules, so that the return matches the bore and wall of the coil pipe.
Need a size or grade not listed here?
Our engineering team manufactures against your drawing or datasheet, with dimensional sign-off before dispatch.
Send us your specificationTraceability
From mill heat to your site
- 01
Approved mill material
Received against the mill certificate; heat number registered.
- 02
Forging & machining
Heat number carried through every stage in our Indian works.
- 03
PMI, dimensional & NDT
Every lot inspected to the governing standard; TPI witness on request.
- 04
Stamped & certified dispatch
Hard-stamped pieces with EN 10204 3.1 / 3.2 certificates.
Quick RFQ
Quote for 180° Return Bend in 24–48 hours
