Socket Weld Pipe Fittings Manufacturer

Best Butt Weld Fittings Manufacturer in India since 1971.

Table of Contents

Socket Weld Pipe Manufacturers, Supplier and Exporter in India

Socket Weld Pipe Fittings is a pipe attachment detail. In this case, the pipe will be inserted in to a recessed area of a pipe, fitting, valve, or flange. In order to join the pipes or valves to the other sections of the pipe, seal welds of fillet type will be applied. So in some cases socket weld fittings is a good choice. This is because the benefits of great structural strength and high leakage integrity would be quite important factors that has to be taken in to consideration when designing your pipeline project.
We manufacture Galvanized Socket Weld Pipe Fittings, Stainless steel (SS) Socket Weld Pipe Fittings, Carbon steel (CS) Socket Weld Pipe Fittings, MS Socket Weld Pipe Fittings, Alloy Socket Weld Pipe Fittings, Nicked Socket Weld Pipe Fittings, Duplex stainless steel (DSS) Socket Weld Pipe Fittings, Super Duplex stainless Steel (SDSS) Socket Weld Pipe Fittings and Brass Socket Weld Pipe Fittings.
We manufacture Socket Weld Pipe Fittings as per ASME B16.5, ASME B16.47, DIN, etc.
We are manufacturers and suppliers Socket Weld Pipe Fittings since the year 1971.

Teshi Group is an ISO certified Socket Weld Elbow manufacturer & distributor in India

Socket Weld Pipe Fittings

Socket Weld Pipe Fittings is a pipe attachment detail. In this case, the pipe will be inserted in to a recessed area of a pipe, fitting, valve, or flange. In order to join the pipes or valves to the other sections of the pipe, seal welds of fillet type will be applied. So in some cases socket weld fittings is a good choice. This is because the benefits of great structural strength and high leakage integrity would be quite important factors that has to be taken in to consideration when designing your pipeline project.
We manufacture Galvanized Socket Weld Pipe Fittings, Stainless steel (SS) Socket Weld Pipe Fittings, Carbon steel (CS) Socket Weld Pipe Fittings, MS Socket Weld Pipe Fittings, Alloy Socket Weld Pipe Fittings, Nicked Socket Weld Pipe Fittings, Duplex stainless steel (DSS) Socket Weld Pipe Fittings, Super Duplex stainless Steel (SDSS) Socket Weld Pipe Fittings and Brass Socket Weld Pipe Fittings.
We manufacture Socket Weld Pipe Fittings as per ASME B16.5, ASME B16.47, DIN, etc.
We are manufacturers and suppliers Socket Weld Pipe Fittings since the year 1971.

Socket Weld Pipe Fittings Dimensions

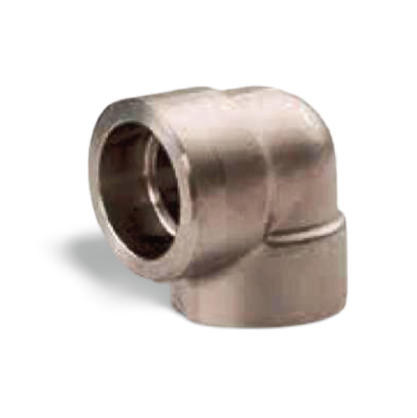

90 Degree Socklet Weld Pipe Fittings

Standard Specification For Socket Pipe Manufacturers

Standard Specifications
Dimensions
ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size
1/2"NB TO 4"NB IN
Type
Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Class
3000 LBS, 6000 LBS, 9000 LBS
Form
45 Deg Elbow, 90 Deg Elbow, Forged Elbow, Threaded Elbow, Socket Weld Elbow.

Material & Grades of Socket Weld Pipe

Material & Grades
Stainless Steel Socket Weld Pipe
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel Socket Weld Pipe
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Carbon Steel Socket Weld Pipe
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
Low Temperature Carbon Steel Socket Weld Pipe
ASTM/ASME A420 SA/420 WPL3, WPL6
Alloy Steel Socket Weld Pipe
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Nickel Alloy Socket Weld Pipe
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

We Export Socket Weld Pipe Fittings to United States (USA), Canada, Germany, Japan, France, Middle-East, Bangladesh, Nepal etc.

Product
Export

Dimension Standards

ASME B16.11, MSS:SP-79/83/95/97/43/114 etc.

Frequently Asked Questions

Most frequent questions and answers

What are the purposes of socket weld fittings?

Socket welding (SW) is used for welding pipes and fittings including reducers, tees, and elbows. When pipes are inserted into a recess in a fitting, flange, or valve, socket weld pipe fittings are used to permanently join the pipes. Once correctly inserted, fillet-type sealing welds are applied to join the pipe to the fitting.

When might socket weld fittings be used?

Socket Weld fittings, in contrast to Buttweld fittings, are often used for pipes with nominal diameters of NPS 2 or less (also known as Small Bore Piping). Fillet-type seal welds are used to link pipes to valves, fittings, or other pipes.

What is a socket weld?

Pipes and fittings, including reducers, tees, and elbows, are welded using socket welding (SW). When pipes are put into a recessed area of a fitting, flange, or valve, socket weld pipe fittings are used to permanently connect the pipes. To attach the pipe to the fitting, fillet-type sealing welds are used once the pipe has been properly installed.

What makes a fillet weld different from a socket weld?

Pipeline insertion is done via welding, or socket welding (SW).                             Two sections of pipe of various sizes are welded together, and the smaller pipe is put into the larger pipe. The fillet weld, which is all around the huge pipe, is present.

What does SW mean in piping?

The ASME B16 specifies socket weld (SW) fittings. A pipe is placed into the fitting’s recessed section similar to how socket welding is done. Because the pipe and the fitting are both square cuts, welding and installation are simple and don’t require any further preparation other than cleaning the exterior.
