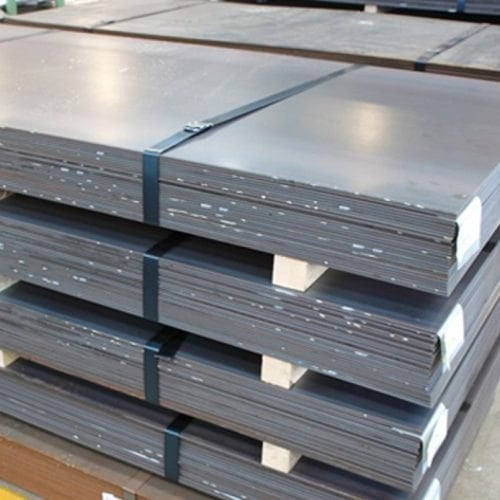

Alloy 20 Plate Dealer & Supplier

Best Butt Weld Fittings Manufacturer in India since 1971.

9 2

Teshi Engineers & Sales Promoters is a full line manufacturer and supplier of Alloy 20 Plate We can supply cut to size Alloy 20 Plate with both narrow and wide widths. Alloy 20 Plate have excellent quality to fully satisfy customer’s requirements.

An ISO 9001:2008 Certified CompanyTeshi Engineers & Sales Promoters is a leading stockholder, supplier and exporter of Alloy 20 Plate . Alloy 20 Plate are cut to your specifications and supplied with complete set of mill test reports. Custom length and width can be made available. Exports is Our Specialty! and we can source many hard to find grades and or non-standards sizes to meet the special requirements of our customers. All Alloy 20 Plate can be cut to size with the help of our extensive expertise in processing steel plate products.

Orders at Teshi Engineers & Sales Promoters are guaranteed fast delivery of the Alloy 20 Plate  in the country. The main reason being we have an excellent warehousing and storage facilities for both finished and semi finished goods.They are made ready as per the urgent requirements of the customers. The Alloy 20 Plate  are manufactured to sustain very high pressure and product warranty.In 2016 we have stocked 3 tons of Alloy 20 Plate  in all sizes, to cater to immediate delivery and urgent needs of the clients. For small requirements we can dispatch the Alloy 20 Plate immediately against the purchase order.

To buy Alloy 20 Plate At best price & urgent delivery please mail to info@teshigroup.com , As we have Our Dealer, distributors & direct sales representatives in below countries who will help you to buy Alloy 20 Plate & will resolve your queries

 Washington, D.C., USA

 New Delhi, India

 Singapore

 Abu Dhabi, UAE

 Riyadh, Saudi Arabia,

 Baghdad,Iraq

 Ankara, Turkey

 Jakarta,Indonesia



What Is Alloy 20 Plate ?

Alloy 20 (UNS N08020) is an austenitic, nickel-iron-chromium based super alloy with additions of Copper and Molybdenum which provide resistance to hostile environments, pitting, and crevice corrosion. It is also stabilized with Columbium to minimize carbide precipitation during welding. Alloy 20 appears to fall between both the stainless and nickel categories as it contains characteristics of both. It was designed for maximum resistance to acid attack and demonstrates superior resistance to stress-corrosion cracking in boiling 20% to 40% sulfuric acid, and also has excellent general corrosion resistance to sulfuric acid and to chloride stress corrosion cracking. Alloy 20 has good mechanical properties at both ambient and elevated temperatures, up to approximately

Alloy 20, also known as Carpenter 20, is a nickel-iron-chromium austenitic alloy that was developed for maximum resistance to acid attack, specifically sulfuric acid. This superalloy has excellent resistance to general corrosion, pitting, and crevice corrosion in chemicals containing chlorides and sulfuric, phosphoric, and nitric acids. It also contains niobium for stabilization against sensitization and resultant intergranular corrosion.

Carpenter 20 combines excellent corrosion resistance with elevated mechanical properties and relatively easy fabrication.

7

Alloy 20 Plate Grade And Specification

Standard

ASTM,AISI, AMS,MLS,EN,JIS,DIN,GOST, ASTM / ASME SB 162 UNS 2200 (NICKEL 200) / UNS 2201 (NICKEL 201) ,ASTM / ASME SB 127 UNS 4400 (MONEL 400) ,ASTM / ASME SB 424 UNS 8825 (INCONEL 825) ,ASTM / ASME SB 168 UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601), ASTM / ASME SB 443 UNS 6625 (INCONEL 625), ASTM / ASME SB 574 UNS 10276 (HASTELLOY C 276) ,ASTM / ASME SB 462 UNS 8020 (ALLOY 20 / 20 CB 3)

Thickness

1.2-100mm

Width

1000-1500mm

Length

1000-6000mm

Surface

2B, No.3, No.4, HL, BA, 8K

Manufacturing process

Hot rolled, cold rolled

Grades Available

Inconel 600 Plate, Inconel 625 Plate, Inconel 800 Plate, Inconel 825 Plate, Alloy 20 Plate,  Hastelloy C-22 Plate, Hastelloy C-276 Plate, Incoloy 800 Plate, Incoloy 825 Plate, Monel 400 Plate, Monel K500 Plate, Nickel 200 Plate, Nickel 201 Plate

Packing

bubble bag and plywood pallet or according to the customers’ requirements.

Export To:

USA, India, UAE, Saudi Arabia, Singapore, Iraq, Turkey, Indonesia



Chemical Properties Of Alloy 20 Plate

Ni

Fe

Cr

Cu

Mo

Nb

32.00-38.00

Balance

19.0-21.0

3.0-4.0

2.0-3.0

8xC-1.0max



C

Mn

P

S

Si



.07max

2.0max

.045max

.035max

1.0max





Mechanical Properties Of Alloy 20 Plate

Form

Tensile Min.

Yield Min. (.2% offset)

Elongation Min.

Reduction of Area Min.

Bar (hot or cold finished)

80 ksi

35 ksi

30%

50%

Sheet/Plate

80 ksi

35 ksi

30%

Alloy 20 Plate Value Added Services

  • Cladding
  • Heat Treatment
  • Annealed
  • Pickling, Polish
  • Rolling

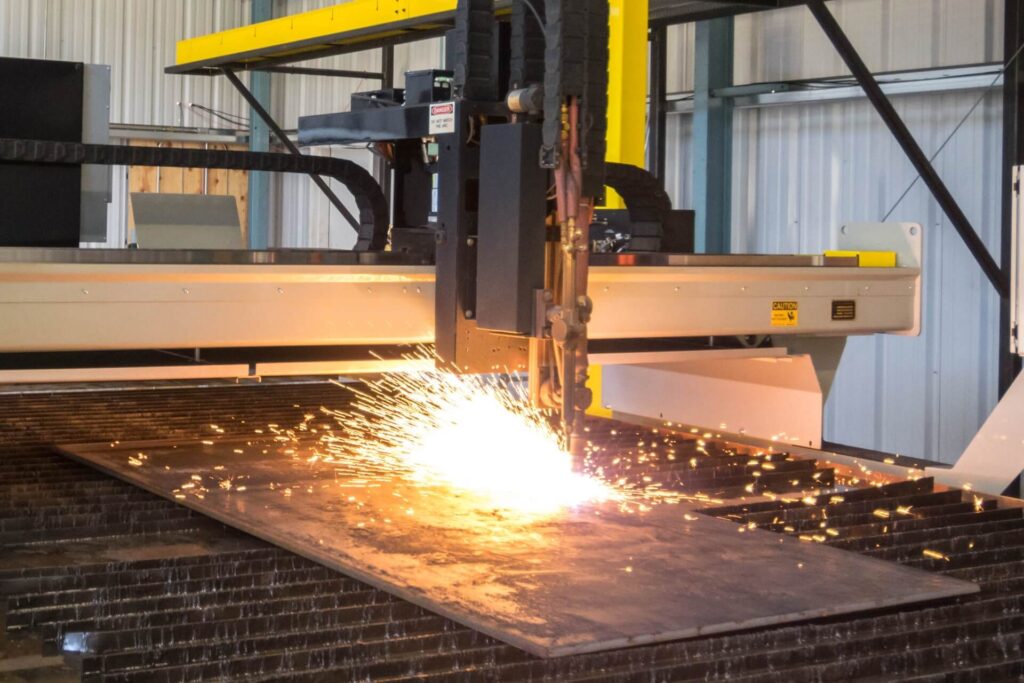

  • Cutting
  • Bending
  • Forging
  • Minor Fabrication Etc.

Typical Application Of Alloy 20 Plate

  • Sulfuric acid pickling tanks, racks and heating coils
  • Phosphate coating drums and racks
  • Heat exchangers
  • Bubble caps
  • Process piping
  • Mixing tanks
  • Chemical and petroleum process equipment
13

Alloy 20 Plate Packaging & Shipping

Each order is packaged according to the customer’ s standards including preparation for export such as wooden case, pallet or according to customer’s requirement All shipping documentation is provided for Alloy 20 Plate delivery from mill to customer.

Every assignment begins with a visit of our experienced sales representative who assesses the volume / weight of the belongings and brief the client about the nature of packing required as well as various documentation formalities when moving from India.

20

Supply Area :

We Supply Our Alloy 20 Plate to various countries like USA, India, UAE, Saudi Arabia, Singapore, Iraq, Turkey, Indonesia

Alloy 20 Plate Ready Stock Available

Alloy 20 Plate Origin & Manufacturers

Origin: Indian Origin, European Origin, Japanese Origin, US Origin, Korea Origin, Thailand Origin, Taiwan Origin
