Hardox Plate Dealer & Supplier

Best Butt Weld Fittings Manufacturer in India since 1971.

9 2

Teshi Engineers & Sales Promoters is a full line supplier of Hardox Plate We can supply cut to size Hardox Plate with both narrow and wide widths. Hardox Plate have excellent quality to fully satisfy customer’s requirements.

An ISO 9001:2008 Certified CompanyTeshi Engineers & Sales Promoters is a leading stockholder, supplier and exporter of Hardox Plate . Hardox Plate are cut to your specifications and supplied with complete set of mill test reports. Custom length and width can be made available. Exports is Our Specialty! and we can source many hard to find grades and or non-standards sizes to meet the special requirements of our customers. All Hardox Plate can be cut to size with the help of our extensive expertise in processing steel plate products.

Orders at Teshi Engineers & Sales Promoters are guaranteed fast delivery of the Hardox Plate  in the country. The main reason being we have an excellent warehousing and storage facilities for both finished and semi finished goods.They are made ready as per the urgent requirements of the customers. The Hardox Plate  are supplier to sustain very high pressure and product warranty.In 2016 we have stocked more than 188 tons of Hardox Plate  in all sizes, to cater to immediate delivery and urgent needs of the clients. For small requirements we can dispatch the Hardox Plate immediately against the purchase order.

To buy Hardox Plate At best price & urgent delivery please mail to info@teshigroup.com, As we have Our Dealer, distributors & direct sales representatives in below countries who will help you to buy Hardox Plate & will resolve your queries

 Washington, D.C., USA

 New Delhi, India

 Singapore

 Abu Dhabi, UAE

 Riyadh, Saudi Arabia,

 Baghdad,Iraq

 Ankara, Turkey

 Jakarta,Indonesia



What Is Hardox Plate ?

Hardox is a trade name of SSAB (equivalents are available ).It is wear plate, designed to last longer than standard mild steel. There are various hardness levels with 400 and 500 being the most common. It is relatively lean in alloy content and as such is not that prone to cracking especially if a few rules are followed.Hardox is weldable using 7018 electrodes or standard mild steel MIG wire (SG2) but will need preheat for thick sections.

Always ahead of the competition, only Hardox high strength steel uniquely combines extreme hardness and toughness into the longest and widest sheets on the market. This high performance abraision-resistant plate is designed for maximum payload and long service life.

 We introduce ourselves as one of the leading distributor & exporter of Hardox 500 Hardness 500HB / Hardox 400 Hardness 400HB Wear Abrasion Resistant Plates We offer a wide array of Hardox Platessourced from certified supplier and vendors. These all-round wear resistant plates are highly tough and have superb bend and weld ability. The range is used in rail road cars, hoppers and feeders and dumper bodies.

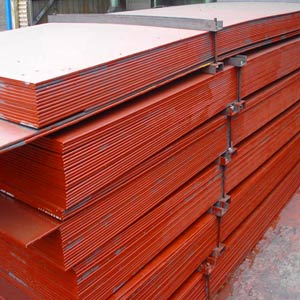

corten steel plate

Hardox Plate Grade And Specification

Item

Abrasion Resistant Plate

Material

HARDOX 500 ,HARDOX 400 ,HARDOX 450 ,HARDOX 600 ,SUMIHARD ,NICRODUR,BRINAR ,DUROSTAT ,DILLIDUR ,JFE EVERHARD

Thickness

3-200mm

Width

500-3000mm

Length

1000-12000mm

Heat Treatment

N, Q+T

Surface Paint

EP, PE, HDP, SMP, PVDF

Export to

USA, India, UAE, Saudi Arabia, Singapore, Iraq, Turkey, Indonesia



Hardox 400 Plate Properties

BRAND OF AR 400 & AR 500 PLATES AVAILABLE WITH US

Brand

stock/Co

HARDNESS RANGE

C.E.V. Typical Values

Values for AR 400

Thk:  10 – 20

Hardox 400

SSAB

370-430

0.37

QUARD 400

DUFERCO

370-430

0.42

JFE EVERHARD 360LE

JFE STEEL CORPN.

360-430

0.38

SUMIHARD K400

SUMITOMO METALS

400-440

0.46

ABRAZO 400

TATA UK LTD.

360-430

0.43

RAEX 400

RUUKKI

360-430

0.43

DILLIDUR 400V

DILLINGER HUTTE

370-430

0.43

XAR 400

THYSSEN KRUPP

370-430

0.43

BRINAR 400

ILSENBURGER GROBBLECH

360-430

0.48

FORA 400

INDUSTEEL

360-430

0.48

HARDPLAST 380

ISD HUTA

360-430

0.56

NICRODUR 400

ACRONI

360-430

0.56

CREUSABRO 4800

INDUSTEEL

360-430

0.48

WELHARD 400

NSC/JAPAN

400-440

0.46

BIS Plate 320

Bisalloy Steels Pty Ltd

320-360

0.4

BIS Plate 400

Bisalloy Steels Pty Ltd

370-430

0.4

BIS Plate 450

Bisalloy Steels Pty Ltd

425-475

0.48

Rockstar 400

Essar Steel India Ltd.

370-430

0.45

Rockstar 450

Essar Steel India Ltd.

425-475

0.52

Rockstar 500

Essar Steel India Ltd.

450-540

0.6

Abrex 400

NSSMC

360-440

0.4

Abrex 450

NSSMC

410-490

0.5

Abrex 500

NSSMC

450-550

0.55

Abrex 600

NSSMC

550-650

0.73



Chemical Properties OF Hardox 400 Plate

HARDOX 400 Chemical Compositiom

Plate

C

Si

Mn

P

S

Cr

Ni

Mo

B

CEV

CET

thickness
mm

max
%

max
%

max
%

max
%

max
%

max
%

max
%

max
%

max
%

typv

typv

3-(8)

0.15

0.7

1.6

0.025

0.01

0.3

0.25

0.25

0.004

0.33

0.23

8-20

0.15

0.7

1.6

0.025

0.01

0.5

0.25

0.25

0.004

0.37

0.27

(20)-32

0.18

0.7

1.6

0.025

0.01

1

0.25

0.25

0.004

0.48

0.29

(32)-45

0.22

0.7

1.6

0.025

0.01

1.4

0.5

0.6

0.004

0.57

0.31

(45)-51

0.22

0.7

1.6

0.025

0.01

1.4

0.5

0.6

0.004

0.57

0.38

(51)-80

0.27

0.7

1.6

0.025

0.01

1.4

1

0.6

0.004

0.65

0.41

(80)-130

0.32

0.7

1.6

0.025

0.01

1.4

1.5

0.6

0.004

0.73

0.48

Plate thickness below 4 mm only after special agreement

CEV = C+Mn/6+(Cr+Mo+V)/5+(Cu+Ni)/15

CET = C + (Mn+Mo)/10+( Cr+ Cu)/20+ Ni/40



Mechanical Properties Of Hardox 400 Plate

Mechanical properties of HARDOX 400

Grade

Mechanical Property

Charpy V Impact Test

HADOX 400

Yield

Tensile

Elongation

Degree

longitudinal

Min Mpa

Mpa

Min  %

-40

J

1000

1250

10

45



Hardox Plate Stock

  • HARDOX 500
  • HARDOX 550
  • HARDOX 400
  • HARDOX 450
  • HARDOX 600
  • SUMIHARD
  • NICRODUR
  • BRINAR
  • DUROSTAT
  • DILLIDUR
  • JFE EVERHARD

Hardox Plate Value Added Services

  • Cladding
  • Heat Treatment
  • Annealed
  • Pickling, Polish
  • Rolling
  • Cutting
  • Bending
  • Forging
  • Minor Fabrication Etc.

Typical Application Of Hardox Plate

  • Buckets
  • Bulldozers Blades
  • Cascates
  • Cutting Edges
  • Line Pans
  • Quarry Trucks
  • Tipper Bodies
13

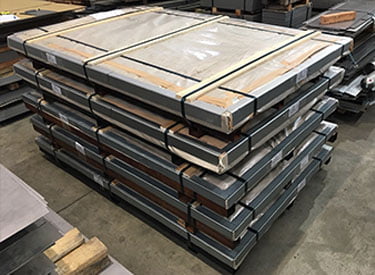

Hardox Plate Packaging & Shipping

Each order is packaged according to the customer’ s standards including preparation for export such as wooden case, pallet or according to customer’s requirement All shipping documentation is provided for Hardox Plate delivery from mill to customer.

Every assignment begins with a visit of our experienced sales representative who assesses the volume / weight of the belongings and brief the client about the nature of packing required as well as various documentation formalities when moving from India.

17
19

Supply Area :

We Supply Our Hardox Plate to various countries like USA, India, UAE, Saudi Arabia, Singapore, Iraq, Turkey, Indonesia

Hardox Plate Ready Stock Available

Hardox Plate Origin

Origin: Indian Origin, European Origin, Japanese Origin, US Origin, Korea Origin, Thailand Origin, Taiwan Origin

Frequently Asked Questions

Most frequent questions and answers

What is hardox plate?

HARDOX® WEAR PLATE FOR EXTREME ABRASION RESISTANCE. The most popular abrasion-resistant (AR) steel in the world is the Hardox® wear plate. In the most demanding settings, Hardoxextreme ®’s hardness will provide you prolonged service life and great productivity.

What is the purpose of Hardox steel?

Hardox can be used to fragment garbage, particularly plastic, rubber, cable, and tire waste. Hardox steels have a significantly stronger resistance to chipping due to their high toughness. 550, 500, or 600 Hardox.

Is Hardox steel stainless?

The Swedish company SSAB created the wear-resistant sheet steel called Hardox in 1974. It is often referred to as a wear plate. The equipment used in abrasive applications and situations with severe wear may last longer because of the slow wear of this steel, which lowers maintenance requirements and expenses.

Is Hardox harder than stainless steel?

I’m not sure what Rockwell steel is, but in general, ordinary steel is more robust than most varieties of stainless steel. There is a widespread misunderstanding that SS is stronger. Low-grade stainless steel called 304 is soft (yet cuts and drills like it’s hard).
